Radtel RT-600 Air Band Walperforated Talkie Portable Am Fm Radio Bidirectionnelle Commutateur VHF Station K5 Récepteur Ham Sans Fil Ensemble Longue Portée - Type black-EURO - General Brand

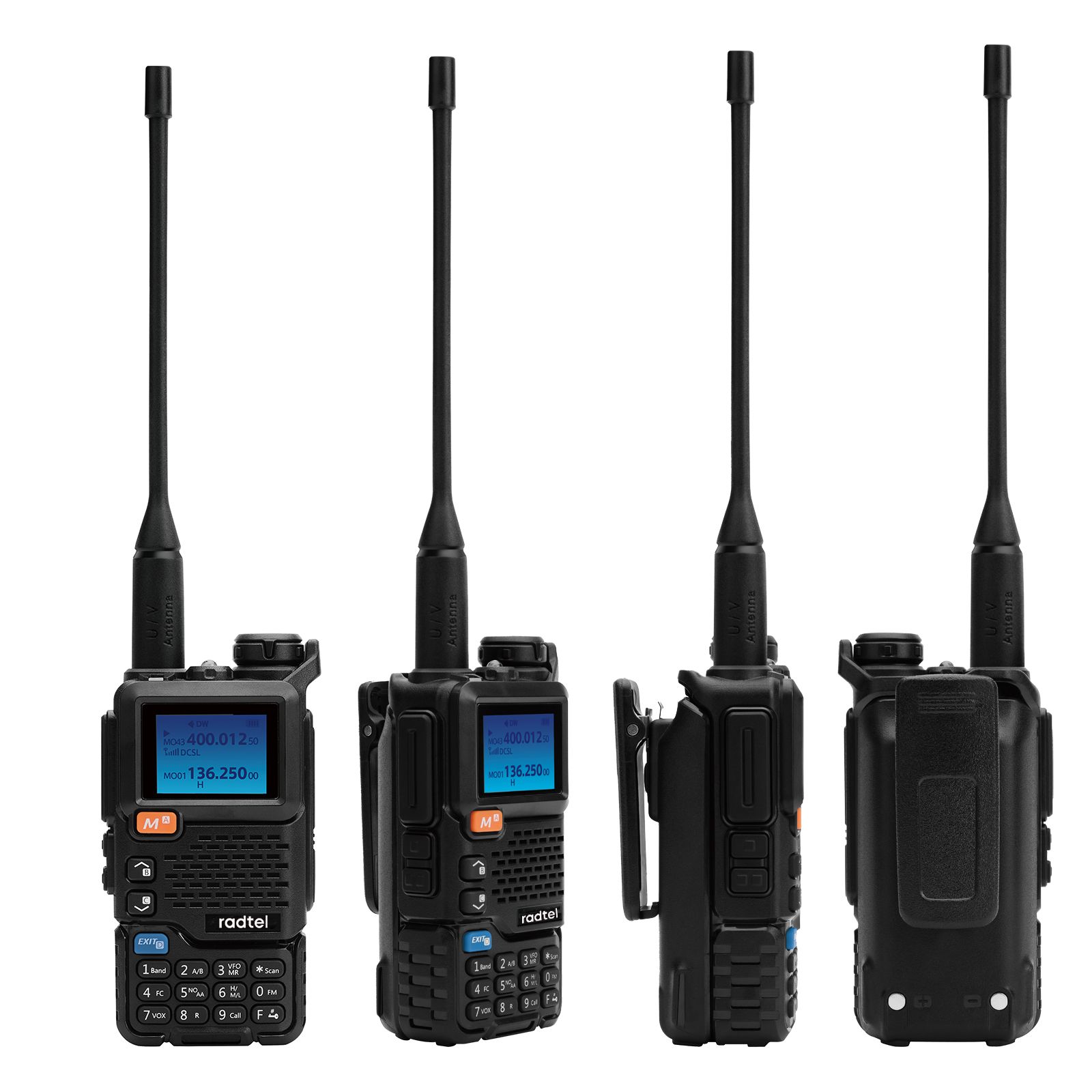

Radtel RT-600 Full Band 50-600Mhz Radio Amateur

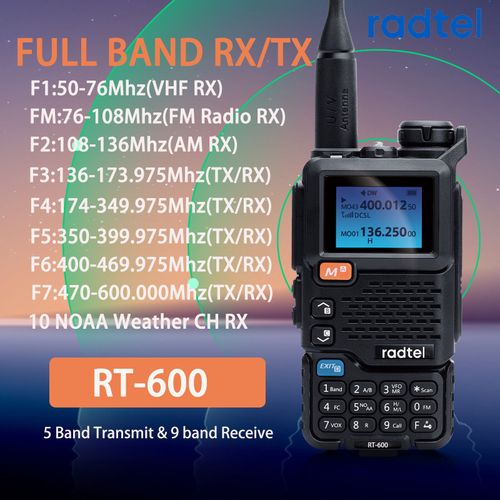

Frequency Range:
(5-band transmit & 9-band Receive)

F1: 50-76MHz (RX only)
FM: 76-108MHz( FM RADIO RX only)
F2:108-135.9750MHz(AM Air Band RX only)
F3: 136-173.975MHz (TX and RX both)
F4: 174-349.975MHz (TX and Rx both)
F5: 350-399.975MHz (TX and RX both)
F6: 400-469.975MHz (TX and RX both)
F7: 470-600.000MHz(TX and RX both)

Store Channel: 200
-10 Channels America NOAA weather forecast
-Cross-band Repeater function
-Wireless Frequency copy from other radios
-Wireless Radio Replication from RT-600 radio
-Auto/Manual Emergency Alert
-FM radio
-8-Group encryption
-Frequency/DCS/CTCSS Scan
-2200 mAh Rechargeable Li-ion Battery Pack
-TPYE C and Desktop Cradle Charging
-VOX (Voice operated Transmission)
-Dual BAND STANDBY
-DTMF AND 1750 Tone
-BUTTON F+ Button 3 to switch Channel mode to Frequency Mode
Multi-Band Transmitting & Receiving
AM Aviation Band Receiving
Fast Copy One Channel
Wireless Radio Replication
Automatic/Manual Emergency Alert
FM Radio
DTMF
Multi-Scan
CTCSS/DCS
High Capacity Battery\Long Standby Time
Work Alone
One Key Call Channel
Type-C And Charge-Base Charging
Jacklight
H (High),M (Medium),L (Low) Output Power Selective
Dual Display Of Frequency And Channel
Dual-Watch Operation
Receive/Transmit Code Setting Separately
Offset Frequency Direction Set
Auto Code Search
Reverse Frequency Function
Multi Step Frequency
Offset Frequency Setting
Busy Channel Lock
Time-Out-Timer
Multi Display Of Channel No./Channel Frequency/Channel Name
Wide/Narrow Bandwidth
Channel Delete
1750HZ Call Tone
Cross-Band Receiving/Transmitting
Squelch Level Adjustable
Channel Store
Frequency And Channel Mode Shift
Keypad Lock
Channel Scan And Add
PC Programmable
High Capacity Li-Ion Battery
Large LCD Display
Voice Prompt
Reminding Switch
Backlight Auto Off Time Selective
Repeater Forwarding Confirmation Function

General Specifications:

Channel:200;

Stored FM Radio Channel Quantity:20;

NOAA Channel:10;

Frequency Stability:±1ppm;

Modulation Mode:FM:11K¿F3E(12.5KHz),16K¿F3E(25KHz);

Dimension:115mmX60mmX37.5mm;

Weight:234g;

Operating Temperature:-20¿+60¿;

Antenna Impedance:50¿;



RECEIVING:

Sensitivity:FM(12dB SINAD);

F1(50¿76):-121dBm

F2(108¿135.9975):-121dBm

F3(136¿173.9975):-123dBm

F4(174¿349.9975):-123dBm

F5(350¿399.9975):-123dBm

F6(400¿469.9975):-123dBm

F7(470¿599.9975):-121dBm

WFM(20dB SINAD):WFM(76¿108)-110dBm

AM(10dB S/N):F2(108¿135.9975)

Audio Frequency:¿0.5W

Audio Distortion:¿10%



TRANSMITTING:

Output Power:¿5W;

Emission Current:¿1.5A;

Max Frequency Deviation:¿5KHz(25KHz),¿2.5KHz(12.5KHz);

Modulation Distortion:¿5%;

Stray Power:¿7.5uW;

Adjacent Channel Power:70dB(25KHz),60dB(12.5KHz);

Residual Modulation:40dB;

Package include:

1× Radtel RT-600 Radio Body
1× 7.2V 2200mah Li-ion Battery Pack
1× SMA-Female Dual Band Antenna
1× Belt Clip
1× ENG Manual
1× Desktop Charger ( 110V ~ 240V ) with US
or EU plug
1× Handstrap
