Carte de développement Micro Bit Adapter MultiInterface Transfer Programming Learning (Carte de développement Micro Bit ) - Générique

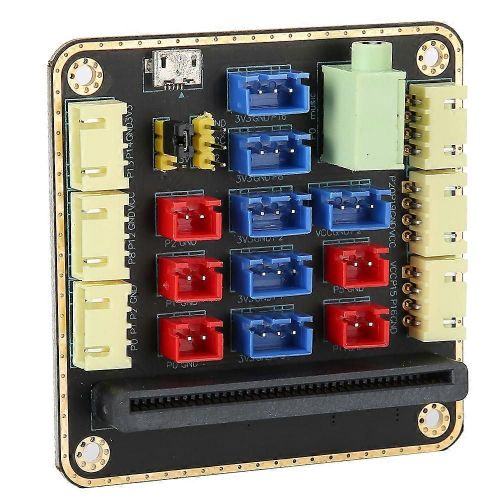

Feature:1. This Micro bit development expansion board has a smaller size. It is more compact and saves space for your project.2. Micro bit development expansion board leads to a variety of interface module programming learning.3. Leading interface has PO (audio socket), P1, P2, P8, P12, P13, P14, P15, P16, P19, P20, 3.3V, GND.4. VCC on the board is powered by 3.3V or Micro USB 5P (5V). It depends on the voltage required by the external module.5. The Micro bit development expansion board has many interfaces, one Micro bit motherboard expansion slot, one 3.5 audio socket, 2.542P (red)/3P (blue)/4P (yellow), 5 ports/6 ports/6 ports, one Micro USB 5P, two 3P pin header.Specification:Item Type: Development Board.Features: Multi-interface transferLeading Interface: PO (audio socket), P1, P2, P8, P12, P13, P14, P15, P16, P19, P20, 3.3V, GND.Package List:1 x Development BoardNote:Power interface: VCC on the board is powered by 3.3V or Micro USB 5P (5V). It depends on the voltage required by the external module. Be careful not to choose the wrong one, otherwise the main board and module may be burnt out.
