36V 35A 10S Li ion Batterie BMS Protection Board PCB pour Cellules Ternaires Cobalt avec Équilibrage - Générique

Features:
The protection board is for 10 series cell Li-ion batteries, it can be used for ternary batteries, manganese acid batteries and cobalt acid batteries.
Charging connector and discharging connector are separated, discharging current is 35A.
Stable various protective functions for charging and discharging, such as overcharge protection, over-discharge protection and short circuit protection.
It has balance function which would ensure each battery cell being fully charged at same time.

Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries.


Specifications:
Discharge Continuous Discharge Current 35A
Momentary Discharge Current 100A
Charge Charge Voltage 42V
Charge Current 8A(Max.)
Overcharge Protection Overcharge Detection Voltage 4.280.05V
Overcharge Protection Delay 100mS
Overcharge Cancel Voltage 4.080.05V
Balance Balance Detection Voltage 4.20.025V
Balance Cancel Voltage 4.20.05V
Balance Current 565mA
Over-discharge Protection Over-discharge Detection Voltage 2.550.08V
Over-discharge Detection Delay 50mS
Over-discharge Cancel Voltage 3.00.1V
Overcurrent Protection Overcurrent Detection Voltage 150mV
Overcurrent Detection Delay 15mS
Overcurrent Protection Current 1205A
Protection Cancel Condition Disconnect Load
Short Circuit Protection Short Circuit Protection Condition Outside Load Short Circuit
Short Circuit Detection Delay 200uS
Protection Cancel Condition Disconnect Load
Internal Resistance Main Circuit Conduction Internal Resistance 15m
Self Power Consumption Working Current 50uA
Sleeping Current(Battery Over-discharge) 10uA
Operating Temperature
-30~+80

Size
69*51.5*10mm/2.71*2.02*0.39""

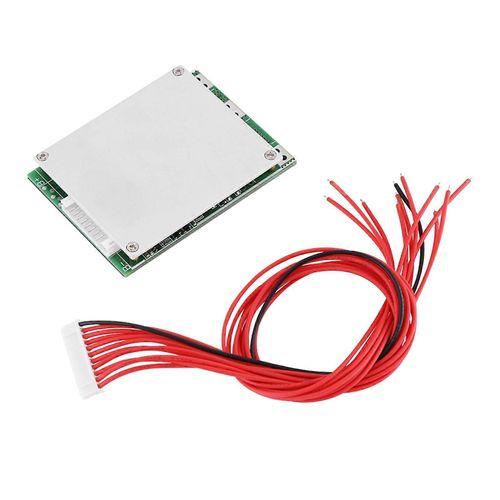

Package Includes:
1 x Protection Board
1 x Cable
