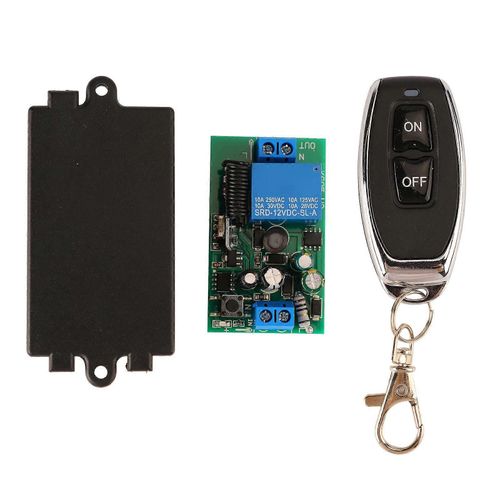

Module d'interrupteur de télécommande On-Off Module d'interrupteur de télécommande à rideau électrique AC85 ?265V - Générique

Features:
1.Control Capabilities: This remote control switch module is intelligent switch and can control one or more devices in the room. Electronic circuit design, stable and reliable performance.
2.LED Indicator: Remote control on off switch module has LED indicator and can give you a clear indication of the situation.
3.Point Action and Self Locking: Remote control switch module has point action learning method and self locking learning method. Also adopts delay 5, 10, 15, 20 seconds to disconnect.
4.PVC Material: This remote control switch module is made of PVC material and easy to use, safe and reliable.
5.Wide Use: This switch module is widely used in remote control water pump switch, wireless remote control machine tool switch, wireless remote control socket, wireless lamps, all kinds of wireless home appliances control.
specification:Item Type: Remote Control Switch Module
Material: PVC
Size: Approx. 20 x 15 x 4cm / 8 x 6 x 2in
Voltage: AC85-265V
Battery: Button Cell CR2016 x 2 (Single 75mAH) (Shipped With Built In Battery)
Operating instructions:
1. Point action learning method: press 1 control board to coding button, LED indicator accompanied by 3 flashes, and so on LED indicator extinguished after pressing the need to coding the remote control button, control board LED indicator blinks 3 times in succession to coding success. Explanation of pointing function. Press the remote control button and the relay will be activated. Release the remote control button to disconnect the corresponding relay.
2. Self locking learning method: Press the control board coding button 2 times continuously, the LED indicator will flashing 3 times, after the LED indicator goes off, press the remote control button that needs to pair the coding, the control board LED indicator will flashing 3 times continuously to pair the coding successfully. Self locking function description. Press the remote control button corresponding to the relay suction, and then press the current remote control button to disconnect the relay.
3. Interlocking learning method: Press the control board 3 times in a row to the coding button, the LED indicator will flashing for 3 times, and then press the remote control A button that needs the coding after the LED indicator goes out, the control board LED indicator will flashing for 3 times in a row and then the LED indicator will light up after the coding success of the A button, and then press the remote control B button, and then the LED indicator will flashing for 3 times and then go out, and then the coding success of the B button. The interlock function is explained. Press the remote control A button, the relay will be absorbed, press the remote control B button, the relay will be disconnected.
4. 5 seconds delay disconnection: Press the control board coding button 4 times continuously, the LED indicator will flashing 3 times, after the LED indicator goes out, press the remote control button, the control board LED indicator will flashing 3 times continuously and the coding will be successful. 5 seconds delay disconnect function description. Press the remote control button, the relay will be sucked in, when it is sucked in for 5 seconds, the relay will be disconnected automatically.
5. Delay 10 seconds to disconnect: Press the control board 5 times continuously to the coding button, the LED indicator flashes 3 times, and then press the remote control button after the LED indicator goes out, the control board LED indicator flashes 3 times continuously to the coding successfully. 10 seconds delay disconnection function description. Press the remote control button, the relay will be sucked in, when it is sucked in for 10 seconds, the relay will be disconnected automatically.
6. 15 seconds delay disconnection: Press the control board coding button 6 times continuously, the LED indicator flashes 3 times, and then press the remote control button after the LED indicator goes out, the control board LED indicator flashes 3 times continuously for coding success. 15 seconds delay disconnection function: press the remote control button, the relay will be sucked, when the relay is sucked after 15 seconds, it will be disconnected automatically.
7. 20 seconds delay disconnection: Press the control board coding button 7 times continuously, the LED indicator flashes 3 times, and then press the remote control button after the LED indicator goes out, the control board LED indicator flashes 3 times continuously and the coding is successful. 20 seconds delay disconnection function description. Press the remote control button, the relay will be sucked in, when the relay is sucked in for 20 seconds, the relay will be disconnected automatically.
8. Clear coding function: Press the control board coding button 8 times continuously, the LED indicator will flashing 4 times, then the LED indicator will automatically flashing 4 times continuously,
