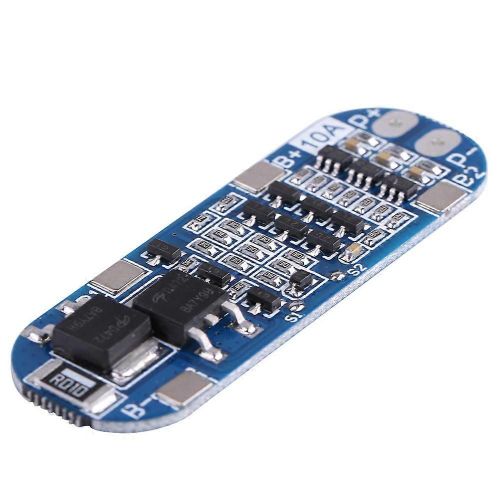

3 Série 11.1V 12V 12.6V Li ion Lithium 18650 Cellule De Batterie BMS PCB Protection Carte(#2) - Générique

Features:
Three series of lithium battery protection board.
Automatically cancel protection after protection conditions restore.

With function of overcharge protection, over discharge protection, short circuit protection, over-current protection.
Suitable for lithium battery pack of 11.1V, 12V, 12.6V.
Fine workmanship and durable.
Quiescent current 30uA, so power consumption is small.



Specifications:
Type(Optional): #1(9-10A), #2(10-13A)
Model: 1#:HX-3S-01, 2#:HX-3S-FL10-A
Size:

#1: 50 * 16 * 1.0mm/1.97 * 0.63 * 0.04inch
#2: 53 * 17 * 4.0mm/2.09 * 0.67 * 0.16inch

Over voltage range: 4.25-4.35v0.05v
Over discharge voltage range: 2.3-3.0v0.05v
Maximum operating current: 6-8A
Maximum transient current: #1: 9-10A, #2:10-13A
Quiescent current: 30uA

Internal resistance: 100m
Charging voltage: 12.6v - 13V
Working temperature: -40~+50
Storage condition: -40~ +80
Effective life: >30000h

Short circuit protection: Yes, delayed self recovery
The component included:
#1: 1 pcs S-8254AA protection chip, 4 pcs AO4407

#2: 1 pcs 2110-cb protection chip, 2 pcs AOD472


Notes:
1. Higher than 3A current discharge product, the discharge rate of battery discharge is above 3C.
2.Multiplier calculation formula: 1C battery, 2000 capacity is equal to 2AH * 1 = 2A maximum working current.
3C ratio battery, 2000 capacity is equal to 2AH * 3 = 6Amaximumworking current.
3.In the process of use, if the battery heat, the battery power is not applicable. This situation cannot be used for a long time.Otherwise, the battery will soon be damaged.


Package Included:
1 x PCB Protection Board(have assembled)
