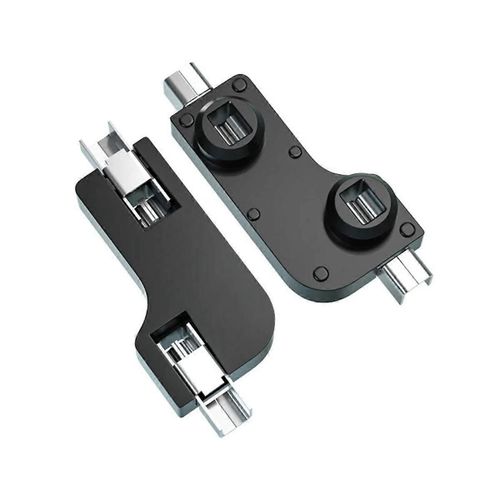

110Pcs Hot-Swapping PCB Sockets Clavier Mécanique Base Remplaçable à Chaud Clavier Mécanique Axis Rep - Générique

High compatibility 6.35mm is suitable for most shafts on the market. The distance between the moving plate and the static plate is 2.90mm. It is suitable for most PCB board shaft pin holes on the market
Reasonable design Socket design, no poor contact
Improved soldering process, improved soldering yield Material upgrade, extended life 5000+
Hot-swappable base for mechanical keyboards Applicable to most shafts on the market
One-time solution Just solder all the bases on the PCB circuit board, and you can plug and play when changing shafts later
Rated voltage: 12V AC/DC max, 2V DC min
Rated current: 10mA AC/DC max 10uA DC min
Contact impedance: 100m max
Insulation impedance: 100M min
High voltage resistance AC100V (50-60Hz)
Insertion force: 3KG max
Lifespan: 5000 insertions and extractions
Extraction force: 0.2KG min
(Due to different batches, the printed words on the product be different, which does not affect use)
Colour:Black
Material:Plastic
Package Contents:
110x Hot Swapping PCB Sockets
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
