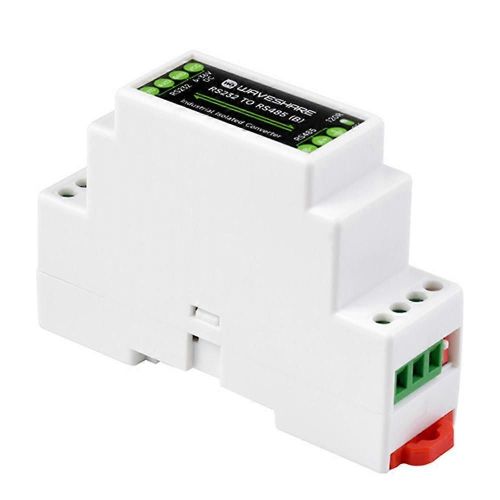

Rail industriel Type RS232 vers RS485 Convertisseur 300-115200Bps Isolation numérique active à large tension - Générique

1. Compatible with RS232/RS485 standard, can convert RS232 signal into balanced differential RS485 signal. 2. The transmission rate is stable, and the communication rate is 300~115200bps. 3. On board integrated power isolation can stable isolation voltage without additional power supply at the isolation end
4. On board integrated digital isolation, signal isolation, high reliability, strong anti-interference and low power consumption. 5. On board (transient voltage suppressor) can effectively suppress surge voltage and transient voltage in the circuit, and prevent- and static electricity
features: Board mounted fuse and protective diode can stable output of current and voltage, prevent over-voltage and over-voltage, and impact resistance. On board RS485 output terminal 120R resistor, which can be switched for easy operation
Power supply interface of on-board terminal, supporting power supply in a wide voltage range of 6~36V DC
Industrial guide rail type V0 -retardant shell, small size, convenient installation, cost-effective
Specifications:
Product type: active digital isolated RS232 to RS485 serial port converter
Power supply voltage: 6~36V DC
Interface protection: anti reverse connection
communication rate: 300~115200bps
Equipment interface: compatible with RS232/RS485 standards
RS232 interface:
Interface type: terminal block
Transmission distance: about 15m
Transmission mode: -to-
RS485 interface:
Interface type: terminal block
Direction control: hardware automatically judges and controls data transmission direction
Interface protection: 600W protection, surge protection and 15KV static protection
Terminal resistance: 120R, which can be enabled through switch switching
Transmission distance: about 1200m
Transmission mode: to many (32 nodes at most, and repeaters are recommended for more than 16 nodes)
Shell: rail type V0 -retardant shell
Size: 91.6 x 23.3 x 58.7mm
color: White
Material: ABS
Package Contents:
1 x RS232 to RS485 converter
Only the above package content, other are not included.
Note: Light reflection and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm.
