BL702S Carte de développement 2.4G Bluetooth Low Energe Zigbee RISC Core Multi-fonction Portable IoT Module js - Générique

Features: 1. Contains 2.4G Radio, Ble+Zigbee Baseband And Design
2. 32-Bit Risccpu, Cache And Memory
3. 5v Usb Cable Power Supply, USB Burning Program
4. Bl702 Is A Highly Integrated Ble And Zigbee Combination Chipset For Iot Applications. The Wireless Subsystem Includes 2.4G Radio, Ble+Zigbee Baseband And Design. The Microcontroller Subsystem Contains 32-Bit Risccpu, Cache And Memory. The Power Management Unit Controls Ultra-Low Power Modes.
5. In Addition, Various Security Functions Are Supported. Peripheral Interfaces Include USB2.0, Ethernet (Bl704/Bl706), Ir-Remote, SPI, UART, 17987, I2C, I2S, PWM, QDEC, KeyScan, ADC, , PIR, GPIO.
Description:
Development Environment:
Here we take the gpio_blink project as an example to briefly explain the development environment and compilation process.
Jianchi CDK Download link: Flathead Chip Open Community - Flathead(t-.cn)
IDE: Download Jianchi CDK, unzip it and install it.

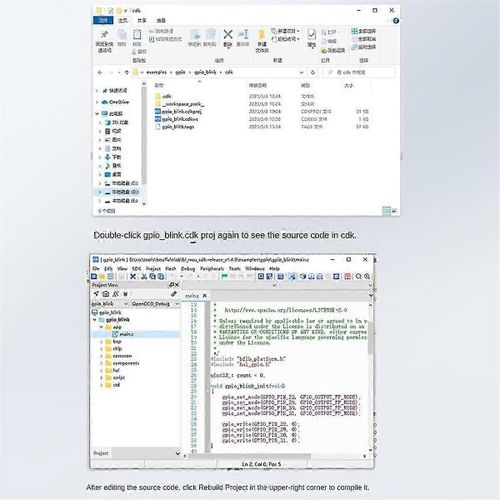

Example: Unzip SDK/bl_mcu_sdk-release_v1.4.5.zip.
Move the unzipped folder to the full English path (no Chinese in the path)
And find the cdk project file in that directory.
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
size: about 35 x 20.35mm
Material: PCB
colour: As shown
Package Contents:
1 x BL702 Development Board
2 x 8P Double Row Pins
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
