Version SD-boot RK3506G2 carte de développement Rockchip Linux pour MIPI/ affichage -A7, B - Générique

is a mini Linux development board based on Rockchip RK3506G2 chip, designed to provide developers with a simple and efficient development platform.

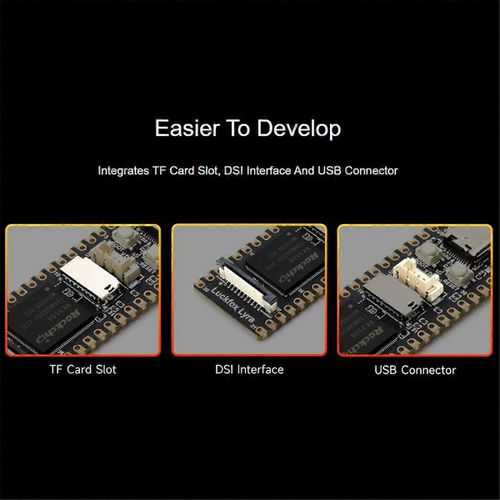

This product supports a variety of high-speed interfaces, including MIPI , RMII and USB, which can meet a variety of application scenarios.
The low-speed interface adopts Rockchip Matrix IO design, which enables the pins supporting this design to share 98 multiplexing functions, and can freely combine PWM, UART, I2C, SPI and I2S, etc., which is convenient for rapid development and debugging.
Tri-core ARM -A7 32-bit core with integrated , supporting single-precision and double-precision floating-point operations.
Built-in ARM -M0 MCU design, supports and AMP configurations.
Built-in 128MB DDRL3 to meet the application requirements of multi-core operation.
The low-speed interface adopts Rockchip's Rockchip Matrix IO design, which allows a variety of multiplexing functions to share limited chip pins, making peripheral circuit adaptation more flexible.
Built-in audio and video codecs, support for multiple audio input and output, and provide high-quality audio playback and recording functions.
Parameters:
Processor: Triple-core Arm -A7 (1.2Ghz) + Arm -M0
Memory: 128MB DDR3L
USB: USB OTG2.0 x 2
Screen interface: MIPI 2-
GPIO: 24 Rockchip Matrix IO pins
Network port: 10/100M Ethernet controller
Default storage medium: Mic-SD card (sold separately)
Colour: Black
Material: PCB+Components
Specification: B Not welded (Without Pin Header)
Package Contents:
1 x Development Board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
