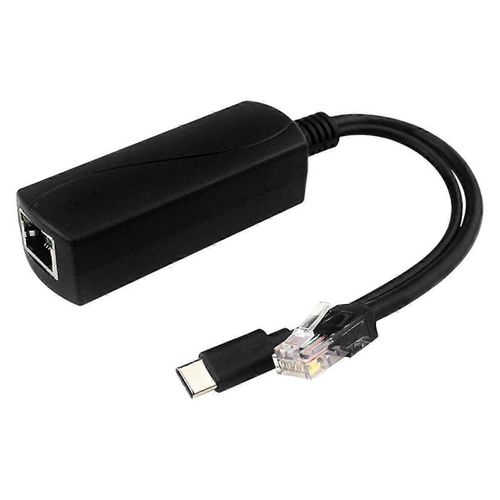

Répartiteur POE pour Raspberry Pi5/5 Génération 5V 4A Type-C Interface Gigabit Ethernet Power over Ethe - Générique

for 5 Poe Splitter. Realize Poe Ethernet Power Supply And Network Communication
Poe Separation Line Connection Provides A Convenient And Cost-Effective Way To Power The Equipment. Network Devices Can Use It As A Power Source.
The Splitter Complies With Ieee 802.3af/At Standard, Can Power Dc 5v, And Has A Transmission Bandwidth Of 10/100/1000m.
The Splitter Separates The Power And Data Signals Transmitted Through Cable, And Is Used In Conjunction With Power Supply Equipment That Meets The Ieee802.3 Af/At Standard (Such As Poe Power Supply Switches, Poe Centralized Power Supplies, Poe Power Supply Transceivers, Etc.), And Can Be Used For Purposes.
Network Devices That Support Poe Provide Both Data And Power. The Typeco503g Splitter Can Output 5v Voltage And Can Be Used With Power Supply Equipment To Flexibly Expand Home And Office Networks Without Being Restricted By Power Line Layout.
Description:
1. Poe Features: Support Ieee802.3af/At Power Supply Standard
2. Power Supply Mode: Supports 1/2(+),3/6(-);4/5(+),7/8(-) Power Supply Mode
3. Poe Input Voltage: 44-57v
4. Dc Socket Voltage Output: 5v
5. Dc Base Current Output: 4a (Max) One Input Rj45 Interface
6. Electrical Interface Parameters: One Output Rj45 Crystal Head; One Typec Male Head
7. Cable Type: Category 5 Unshielded Twisted Pair (Utp) Or Higher
8. Protocol Standard: Ieee 802.3 Af/At Power Over Ethernet
9. Speed: 10/100/1000m
10. Led Indicator: Poe Input Power Indicator
11. Working Temperature: 0~55C
12. Working Humidity: 90%, No Condensation
13. Storage Temperature: -20~70C
14. Storage Humidity: 95%, No Condensation
15.Colour:As Shown
16.Material:ABS
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, ch Will Not Affect The Use
Package Contents:
1 x POE Splitter
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
