ESP32-S3 1,69 pouce Écran tactile Carte de développement LCD Affichage rond WiFi Bluetooth avec QST Attitude - Générique

Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, the main frequency up to 240 MHz
Support 2.4 GHz Wi-Fi (802.11b /g) and Bluetooth 5 (LE), onboard antenna,Built-in 512KB and 384KB ROM, stacked 8MB PSRAM and external 16MB Flash
Type-C interface, keep up with the trend of , no need to the positive and negative plug
On-board 1.69-inch capacitive touch LCD screen, 240x280 resolution, 262K color, can clearly display color pictures
Built-in ST7789V2 driver chip and CST816T capacitive touch chip, respectively using SPI and I2C interface communication, do not occupy too much interface pin resources

Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), can detect motion attitude, step counting, etc
Onboard PCF85063 chip, reserved 1.25 battery slot (support charging), can facilitate the realization of functional requirements
On-board , BOOT and a side button with customizable functions for easy use of buttons for custom function development
Onboard 3.7V MX1.25 lithium battery charging and discharging interface
Four GPIO, I2C and UART pads are extracted, which can be used for external equipment and debugging, and can be flexibly configured with peripheral functions
Support flexible clock, module power supply setting and other accurate control, to achieve multi-scene low-power mode
Touch screen has high transmittance, fast response and
Note: Do not include Controller boards or Host
Different batches may have different appearances, which not affect the use; different light or display may cause color difference in the actual product
Colour:Black
Material:PCB+Plastic

Package Contents:

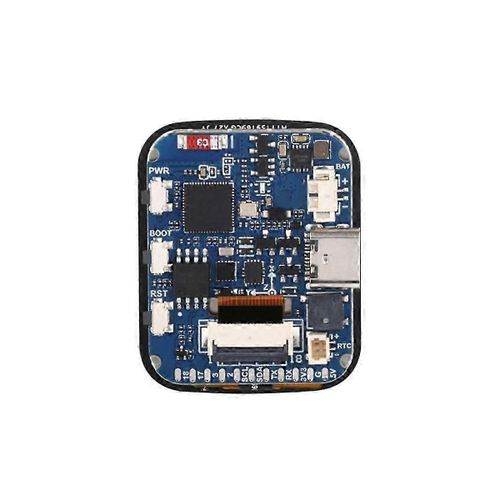

1 x ESP32-S3 1.69inch Touch screen Development Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
