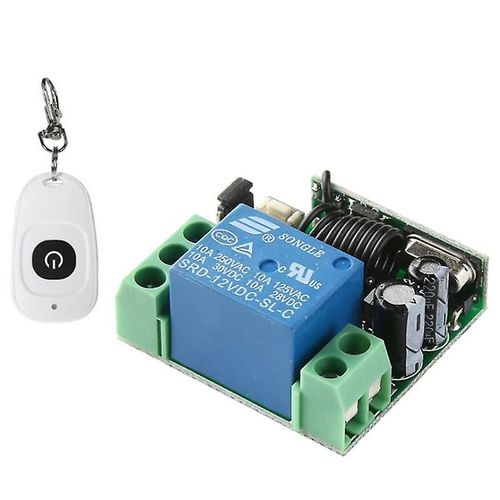

Commutateur de télécommande à canal unique 433MHz 12V Type d¿apprentissage Commutateur de télécommande sans fil pour AC - Générique

Commutateur de télécommande à canal unique 433MHz 12V Type d¿apprentissage Commutateur de télécommande sans fil pour AC Function selection: 1. Set to jog output: unplug the jumper cap on the board and don't use it. 2. Set as self-locking output: short-circuit ""T"" with the middle pin with a jumper cap on the board. 3. Set as interlock output: short-circuit ""L"" with the middle pin with a jumper cap on the board. Learn to code: 1. Power on the circuit board and the LED will light up. 2. Press the KEY button on the PCBA board. After the LED goes out, release the button. 3. Press any button on the remote control, the LED flashes. 4. Learning to code is OK. Clear the original code: 1. Power on the circuit board and the LED will light up. 2. Press the KEY button on the PCBA board, don't let go. 3. After seeing the LED flashing, release the button again. 4. Clear OK. Model: 12V single-channel remote control switch Type: Single remote control switch Working voltage: DC12V Working frequency: 433MHZ Total load power: 10A Rated voltage range: above 440V Remote control distance: 100M Working temperature: -15-75 () Scope of application: electronic lock remote control, access control switch, circuit modification, small motor, etc. Wiring instructions: 1. +: Connect the positive pole of the 12V power supply 2. -: Connect the negative pole of the 12V power supply 3. NO: output terminal; normally open terminal of relay 4. COM: output terminal; relay common terminal 5. NC: output terminal; normally closed terminal of the relay Explanation of output mode: 1. Self-locking: Press the same remote control button, press it once, the relay is on, press again, the relay is off. 2. Interlock: Press the remote control ""A"" key to turn on the relay, and press the remote control ""B"" key to turn off the relay. 3. Jog: Press the remote control ""A"" button to turn on the relay, and release the remote control ""A"" button to turn off the relay. If you keep pressing the ""A"" button of the remote control, the relay is always on. When you release the remote control, the relay is off. Colour: as shown Material: ABS Size: 42 x 40 x 26mm Package Contents: 1 x remote control switch 1 x remote control Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
