Commutateur de télécommande sans fil universel DC12V 1CH Module récepteur de relais Transmetteur RF 433Mhz Télécommandes intelligentes - Générique

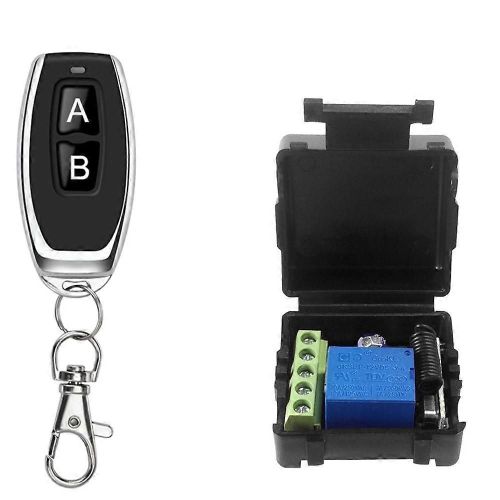

Commutateur de télécommande sans fil universel DC12V 1CH Module récepteur de relais Transmetteur RF 433Mhz Télécommandes intelligentes Specifications Of The Remote Control: Model Number: KT08-4 Operating RF Frequency: 433MHz. Coded System: 1527 Learning Code. Working Voltage: DC 3V. Working Current: less than 25mA Transmitting Power: 10mW. Wireless Operating Distance: 50m(Free Space). Transmission Rate: 50 - 60KHz. Frequency Deviation: +0.2MHz or -0.2MHz. Technical Data Of Receiver: Model Number:KR1201A Input voltage: 12V Working current: 10A Maximum load power: 110W Frequency: 433Mhz Support encoding format: EV1527 Wiring : NC COM NO Working mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s ) Wiring diagram : +V : 12V + input - V: 12V - input NO: Output , normal open COM:Output , common NC: Output , normal close Wireless Communication:RF Item Type:Switches Switch Type:Remote Control color:Black Material:plastic Package Contents: 1 x receiver switch 1 x remote control Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
