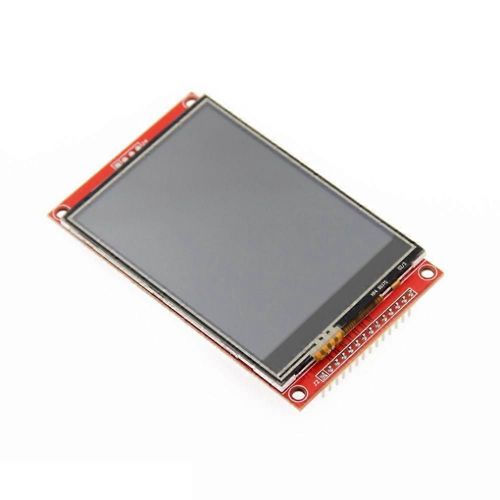

Module LCD Spi 3,2 pouces 240X320 Tft Module Ili9341 occupe au moins 4 Io (pas de fonction tactile) - Générique

Module LCD Spi 3,2 pouces 240X320 Tft Module Ili9341 occupe au moins 4 Io (pas de fonction tactile) 3.2 inch color screen, support 65K color display, display rich colors 320X240 HD resolution, no touch function Using SPI serial bus, only a few IOs can light up the display With SD card slot for easy expansion of experiments Provide a wealth of sample programs process standards, long-term stable work Provide underlying driver technical support Size 3.2(inch) Type: TFT Driver chip: LI934 Resolution: 320*240 (Pixel) Module interface: 4-wire Spl interface Display area (AA area): 48.6x64.8(mm) Module PCB backplane size: 55.04X89.3(mm) Working temperature: -20Celsius~60Celsius Storage temperature: -30Celsius~70Celsius VCC power supply voltage; 3.3V~-5V Logic refers to the IO port voltage: 3.3V (TTL) Weight: 41(g) VCC: 5V/3.3yV power input GND: Ground : Liquid product screen chip selection signal, low level enable RESET: Liquid product screen reset signal, low level reset DC/: LCD screen register/do data selection sweep signal, low level: register, high level: data SDI (MOSI): SPI bus write data signal : SPI bus clock signal LED: Backlight control, high-level lighting, if no control is needed, then 3.3V will be always on SDO (): SPI bus data signal, if you don't need to read the function, you can not connect it Colour:Red Material: PCB Package Contents: 1 x LCD display module Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
