Pure Sine Wave Inverter Driver Board EGS002 "EG8010 + IR2110" Driver+LCD Module - Générique

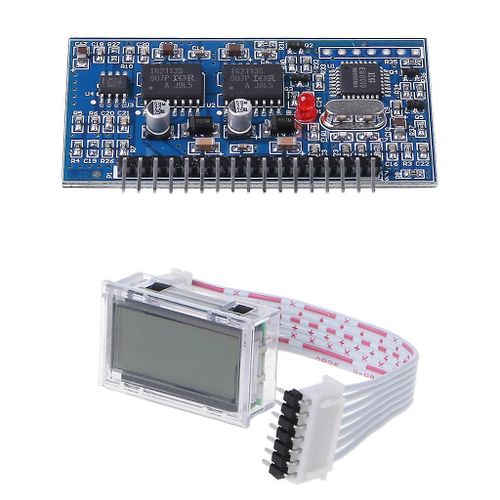

Pure Sine Wave Inverter Driver Board EGS002 "EG8010 + IR2110" Driver+LCD Module EG8010 is a digital, function very well bring their own dead-time control of pure sine wave inverter generator chip, used in two-stage DC-DC-AC power conversion structure or single-stage DC-AC power frequency transformer Boost architecture, an external 12MHz crystal oscillator, to achieve high precision, and harmonic distortion is very small, 50Hz or 60Hz pure sine wave inverter ASIC. The chip uses CMOS technology, the internal integration of SPWM sine generator, dead for time control circuit, the multiplier factor range, soft start circuit, for protection circuit, RS232 serial communication interface and a serial LCD driver module 1602 functions. Features: Voltage,current,real for time temperature feedback Overvoltage,undervoltage,overcurrent and overheating protection Serial communication to set the output voltage,frequency and other parameters External Comes with deadband control,pin set up 4 dead time:300nS dead for time;500nS dead for time;1.0uS dead for time;1.5uS dead time Pin set up four kinds of pure sine wave output frequency:fixed frequency 50 hz pure sine wave;60 hz fixed frequency pure sine wave;0-100 hz pure sine wave frequency is adjustable;0-400 hz pure sine wave frequency is adjustable 5V single power supply Unipolar and bipolar modulation External 12MHz crystal oscillator PWM for carrier frequency 23.4KHz Soft-start mode pin setting the response for time of 1S External serial port 128 * 32 LCD module 1602 display the voltage,frequency,temperature and electric current of the inverter and other information Applications: Single phase pure sine wave inverter PV Inverter Wind power inverter Uninterruptible Power Supply UPS System Digital generator system IF power Single-phase motor speed controller Single-phase inverter Sine wave dimmer Sine wave regulator Sine wave generator Size:3.1x1.4cm/1.22x0.55inch 3.5x2.2x1.2cm/1.38x0.
