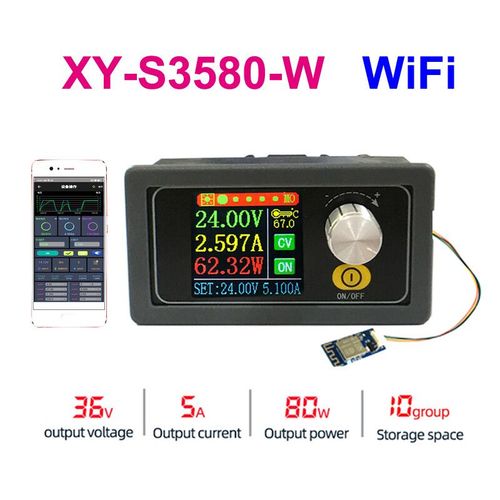

80W 5A WiFi App DC/DC Buck Boost convertisseur CC CV 0.6-36V Variable DC Module d'alimentation régulateur de tension réglable 2.4G - Type XY-S3580-W WiFi - Generique

WiFi Version:
IOS / Android App:Search 'Sinilink'on The App Market
PC Software Downloadhttps://www.sinilink.com/download/tools/Sinilink-Setup.exe
Product application: 1. It is used as a common voltage Buck-Boost power supply with over-voltage / over-current / over power / over temperature / under voltage protection

2. The product has constant current function, which can charge the rechargeable battery within 0.6V~36V;
Charging steps:
(1) determine the floating charge voltage and charging current of your rechargeable battery; (if the parameter of lithium battery is 3.7V/2200mAh, the floating charge voltage is 4.2V; if it is 12V rechargeable battery, generally set the floating charge voltage to about 14V)
(2) under no-load condition, set the output voltage to floating charge voltage; (if 3.7V lithium battery is charged, adjust the output voltage to 4.2V)
(3) set the charging current (constant current value) and set the current directly.
(4) connect the battery for charging.

Note: when charging the battery, the positive and negative poles of the battery should not be connected reversely, which is easy to burn the product!
3. The product has constant current function, which can directly drive 0.6-30V, 0-15W LED lamp;
To drive the LED lamp:
(1) determine the working current and maximum working voltage of the led you need to drive;
(2) under no-load condition, set the voltage value and current value to make the output voltage reach the maximum working voltage and current of LED (Note: calculate the power when setting the current, charge within the power range, use over power, and the product will enter the protection state.)
(3) connect led and test the machine.

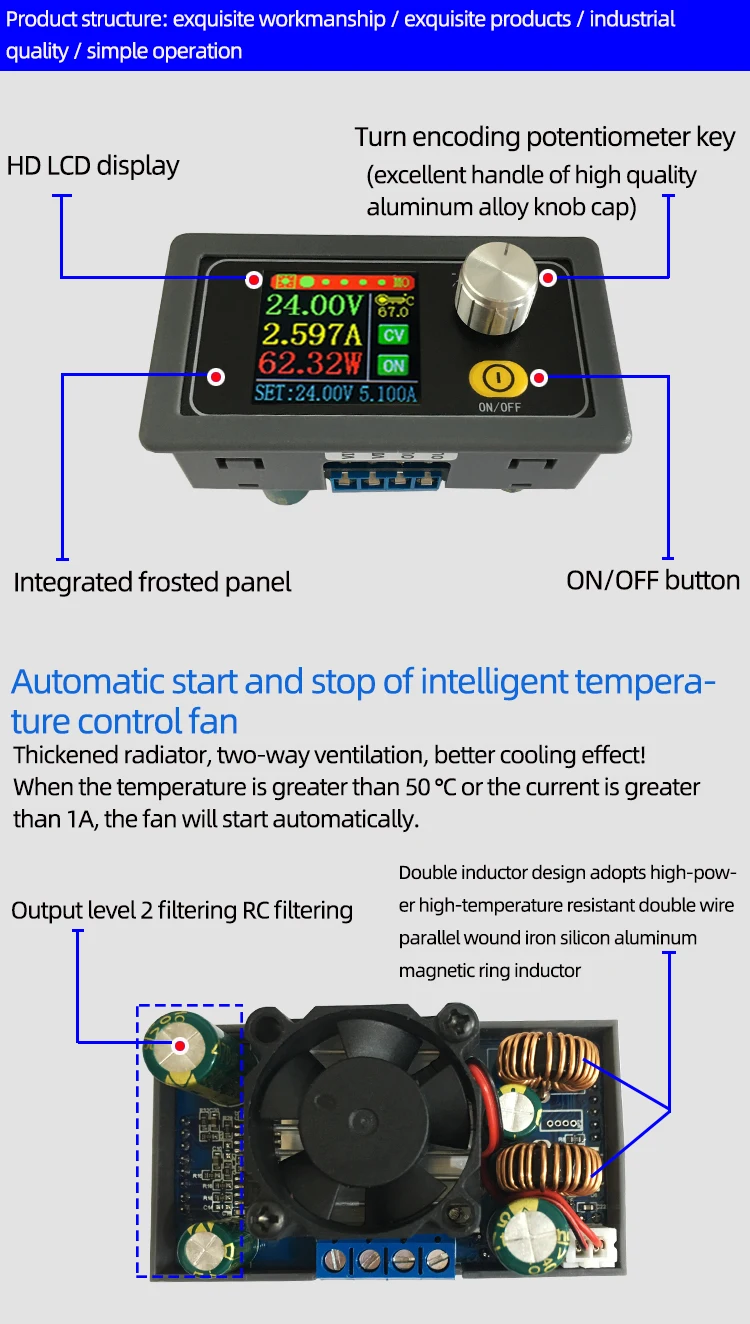

This product can adjust the constant current value (between 0 - working current) to realize the LED's stepless dimming and no stroboscopic!! Details of interface and key functions: Short press the 'ON/OFF' button to turn on and off the power output, long press the ' ON/OFF' button for 2 seconds, the screen can rotate, 360 ° four-way rotation.Turn the encoding potentiometer to turn the page quickly.


Press the code potentiometer key briefly to activate the parameter (voltage / current) to be set;
Short press the key of the coding potentiometer to switch between full selection and bit selection;
When all is selected, the blue display will be reversed, and the set voltage / current will be switched through the rotary encoder;
After bit selection, the corresponding bit will be displayed in reverse blue, and parameters will be set by rotating encoder;
After the setting is completed, long press the key of the encoding potentiometer for 2 seconds or more, and no key operation will automatically exit the setting;
All parameters are saved automatically after exiting.
